The View Glass Solutions
09

Texture · rhythm · privacy

Pattern Glass

Rolled textures that diffuse light and provide privacy while retaining natural illumination — formed as molten glass passes between engraved rollers, giving consistent, repeatable surfaces.

Watercube rolled pattern glass surface
Material library — rolled surface patterns

Key features

  • Thickness range 3–8 mm
  • Clear and ultra-clear (low-iron) substrates
  • Can be tempered, laminated or used in IGUs
  • Light transmission 75–90% (pattern dependent)
  • Privacy rating moderate to high
  • Maximum size 2,440 × 3,660 mm

Performance data

Thickness range
3–8 mm
Light transmission
75–90% (pattern dependent)
Maximum size
2,440 × 3,660 mm
Certifications
ISO 9001, CE EN 572, AS/NZS 4667
Download the portfolio — PDF · 21 MB · 30 pages

Material library — rolled surface patterns

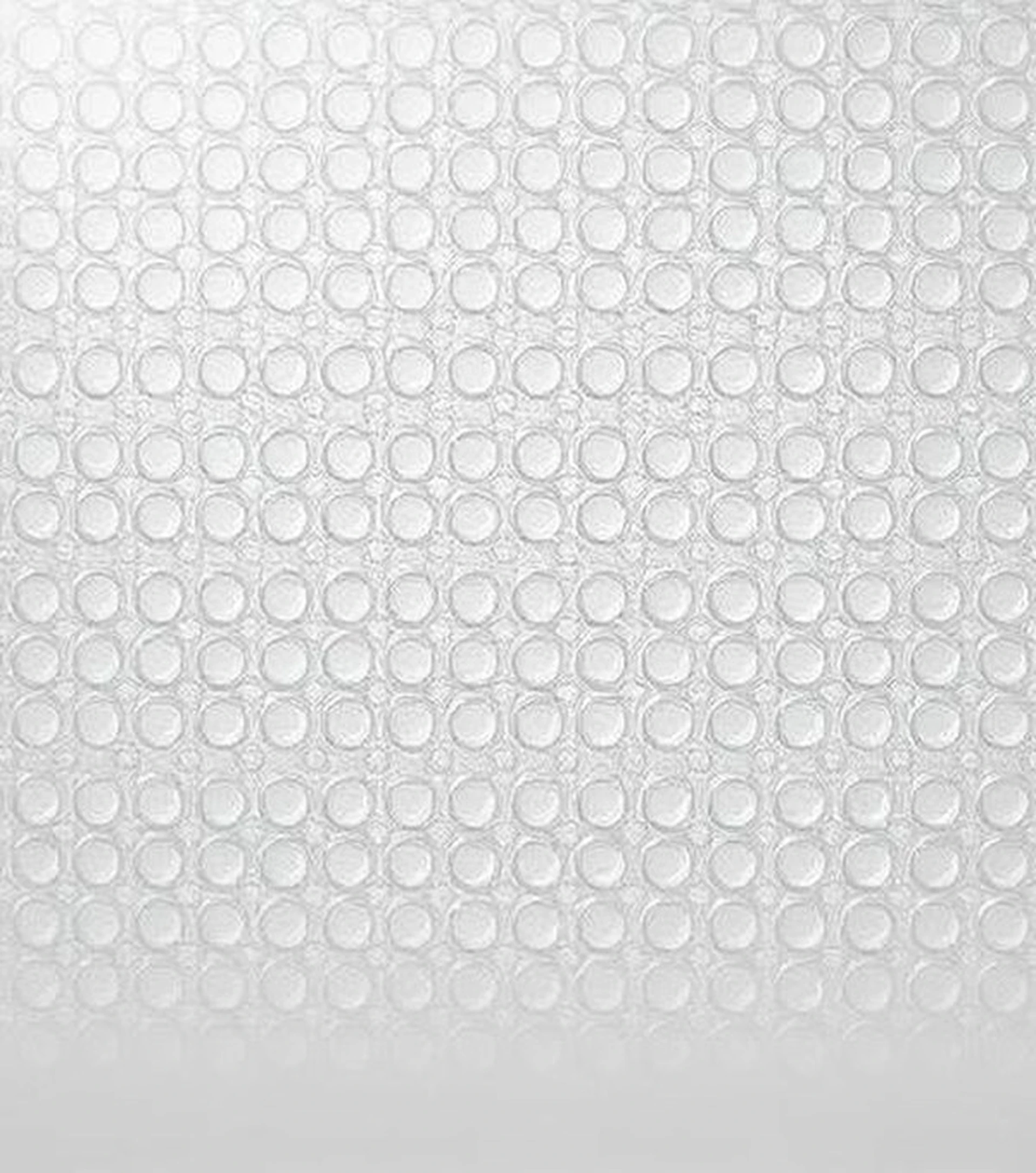

Spotlight rolled pattern glass texture
Spotlight01

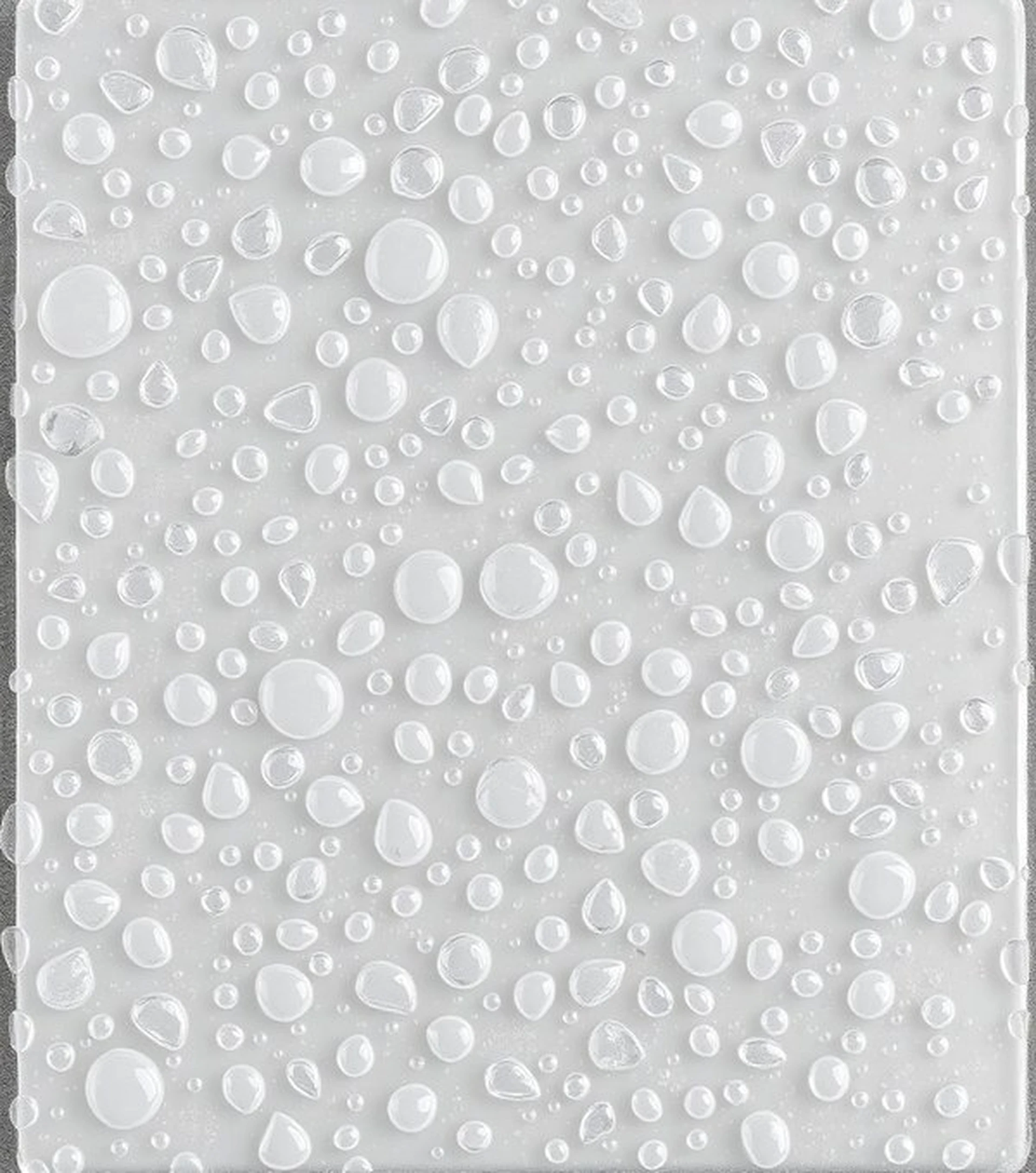

Big Rain rolled pattern glass texture
Big Rain02
Watercube rolled pattern glass texture
Watercube03

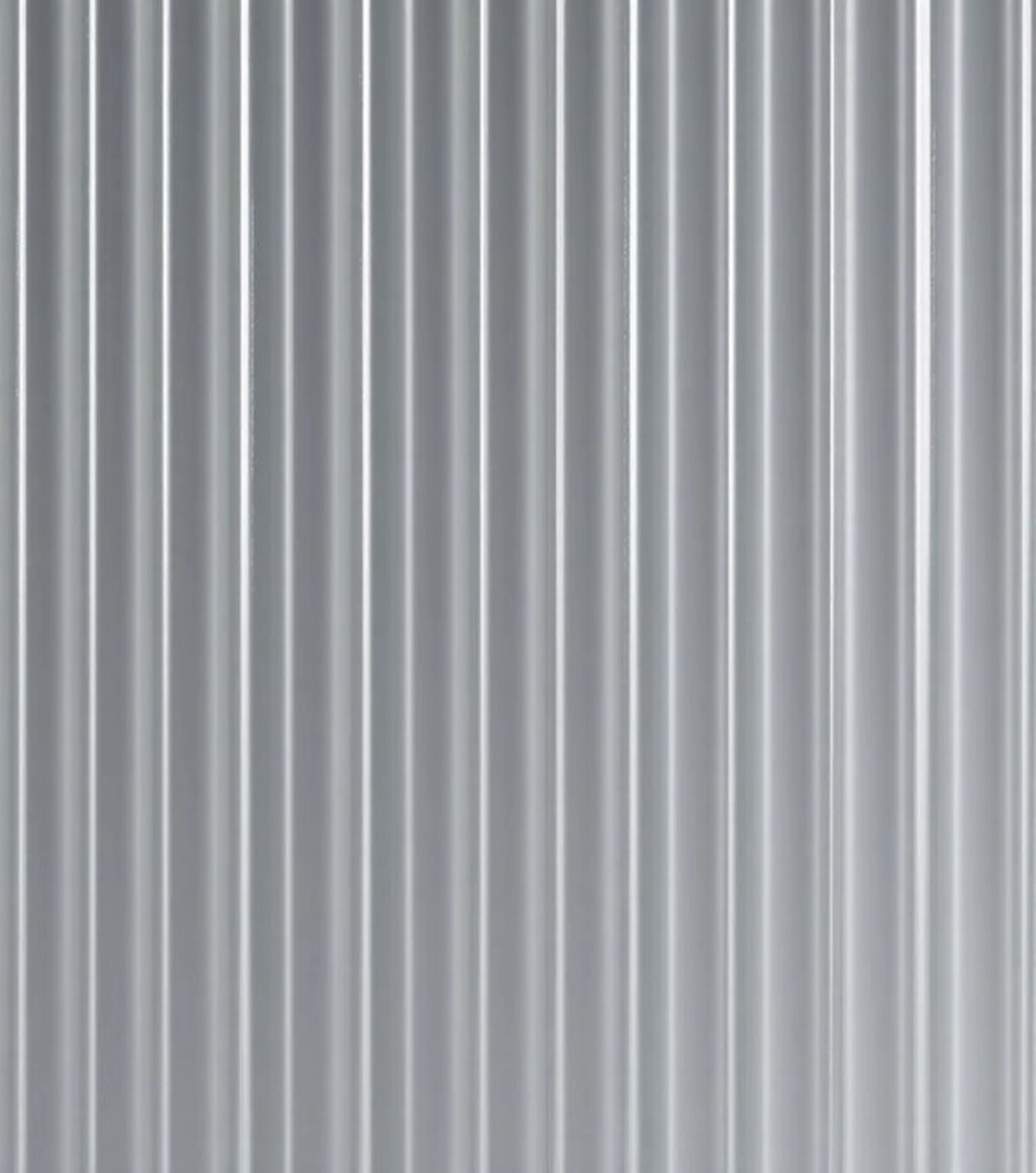

Flutelite S fluted pattern glass texture
Flutelite S04

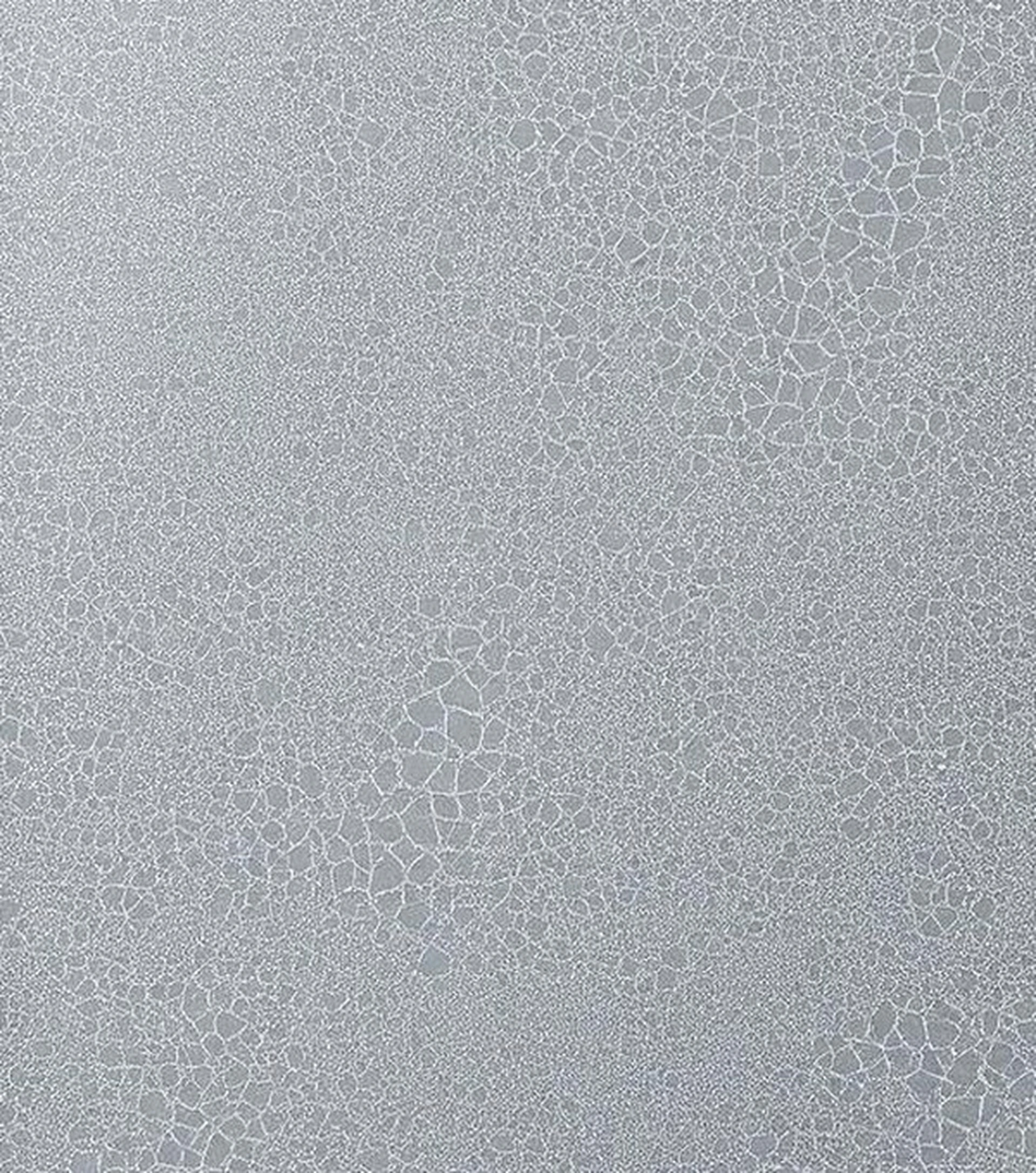

Moru rolled pattern glass texture
Moru05

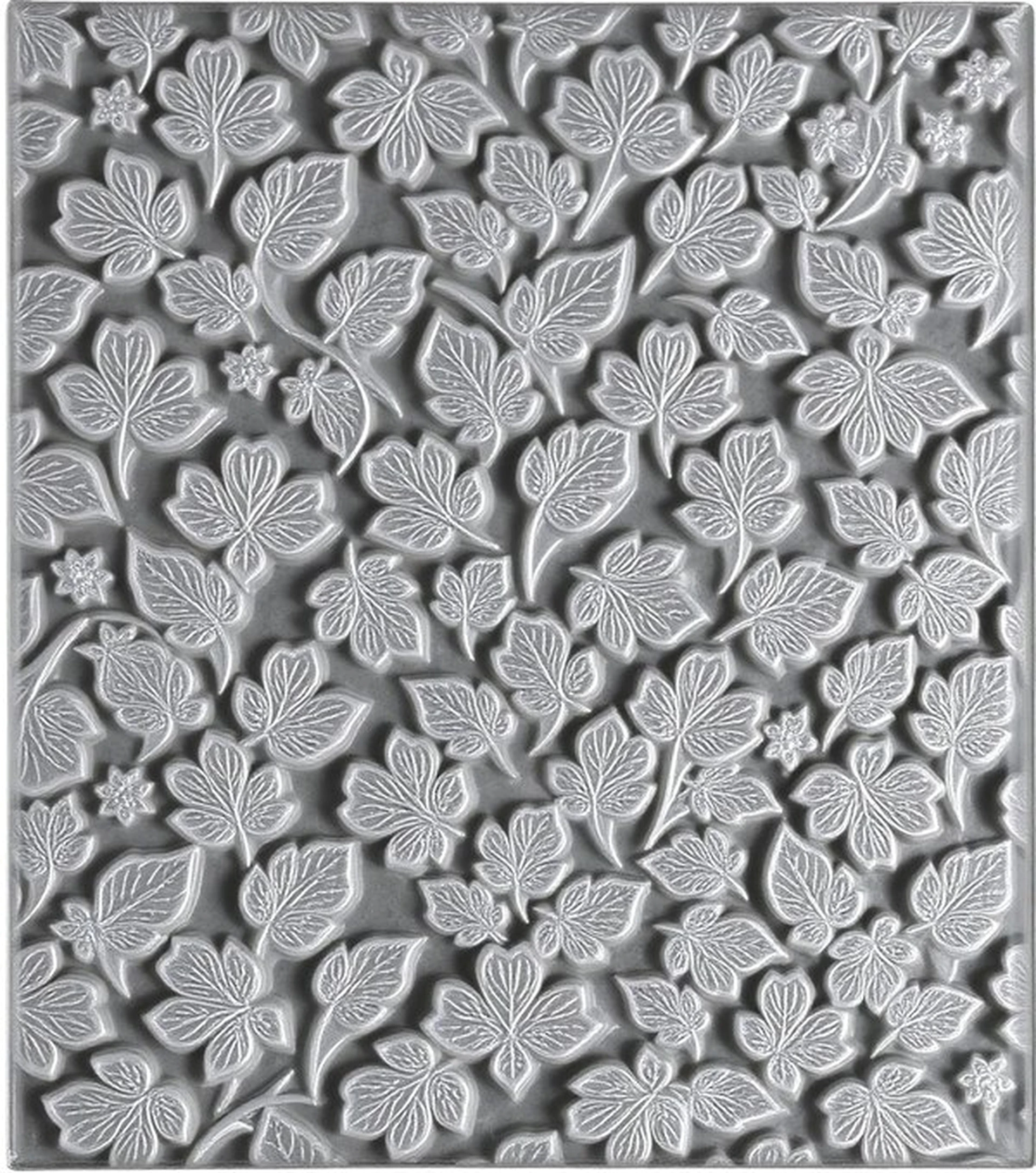

Flora rolled pattern glass texture
Flora06

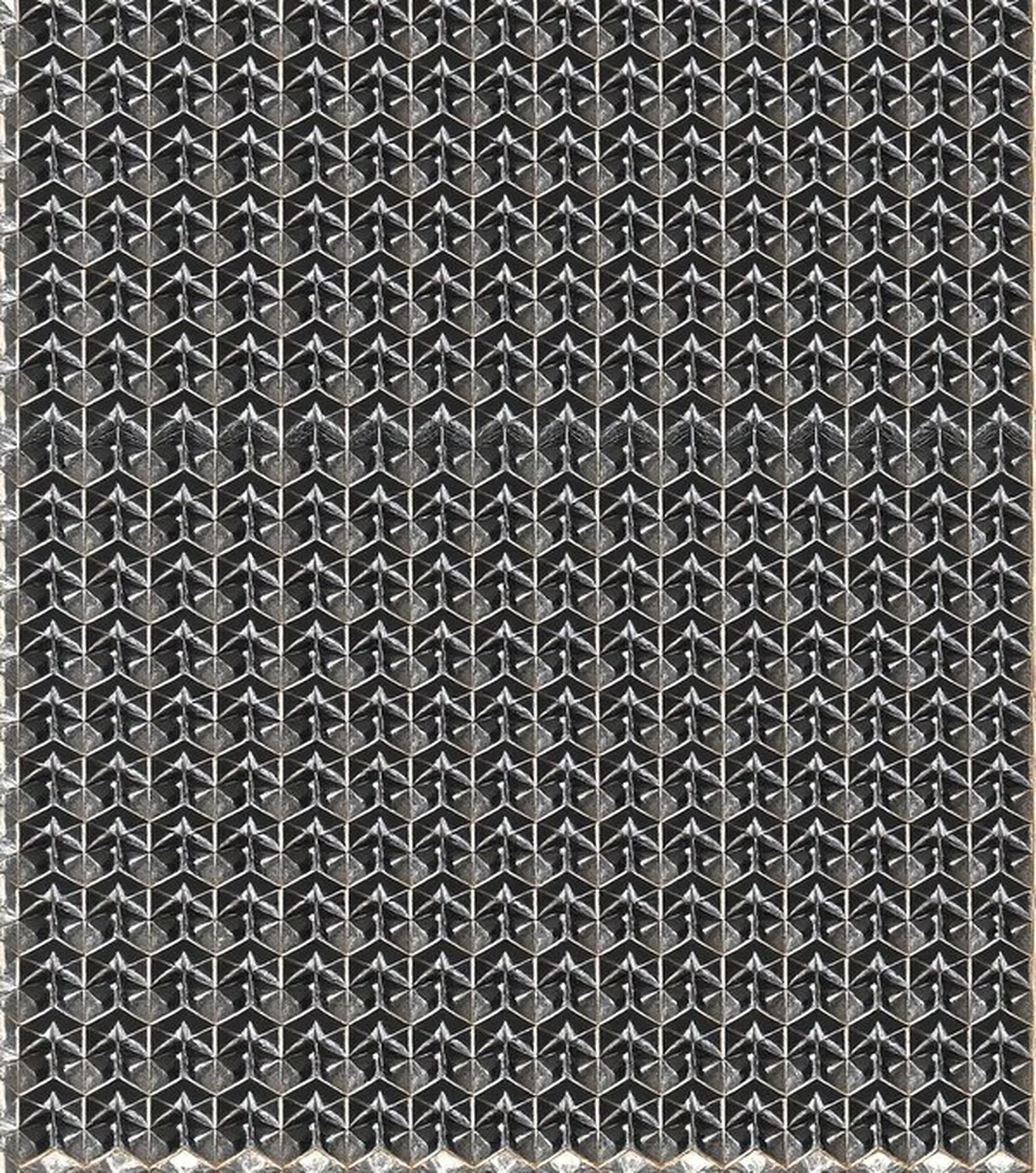

Pyramid rolled pattern glass texture
Pyramid07

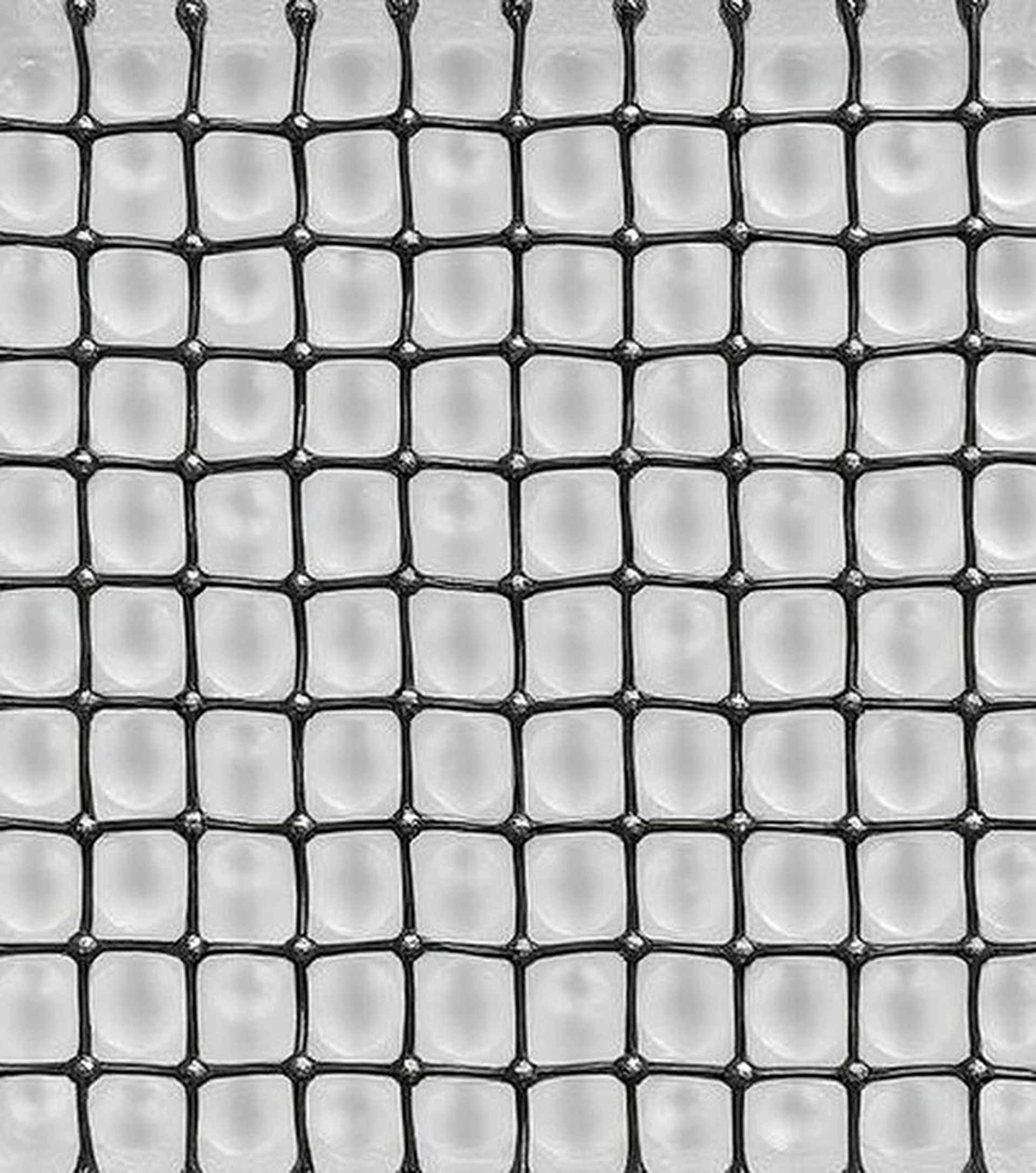

Wire glass rolled pattern texture
Wire Glass08
Technical Data Summary →Next — Insulated Glass Units →
